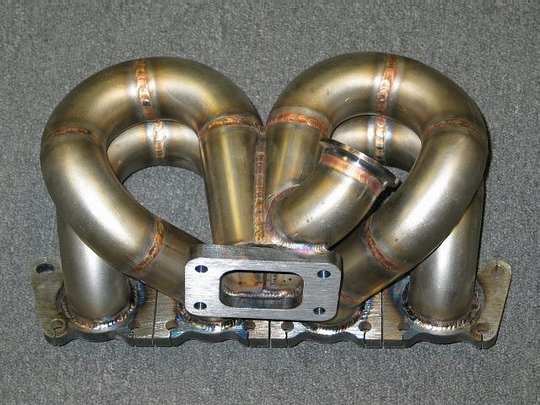

1.8T Transverse ProStreet Turbo Manifold
Full-Race engineered turbo manifold for the VW 1.8T motor. This T3 turbocharger manifold is a must for those seeking to extract maximum power from their setup.
Applications:
- Volkswagen 1.8T transverse engine configurations.
Application Notes:
- Manifold designed for standard garrett 4 bolt T3 sized turbines with either T04S, T04E, or T04B compressor housings.
- T04E compressor housing can be clocked with the outlet facing upwards or downwards.
- T04S compressor housings must be clocked with outlet facing downwards.
- Designed for use with TiAL 44mm waste gate only.
Key design features include:
- True low angle merge collector.
- CAD designed.
- Robotically TIG welded ensures a perfect part.
- High quality stainless steel construction.
- Flanges machined flat after fabrication for a leak free sealing surface.
|
|
